From AS9100-certified aerospace assemblies and IATF 16949 automotive design to lean cell manufacturing, IBR-compliant boilers, ASHRAE-grade HVAC, bespoke SPMs, and precision sheet metal — DID Solution delivers integrated engineering that performs under audit, on the shop floor, and in the field.
Bridging Theoretical Design with Shop-Floor Reality.
At DID Solution, we don't just deliver drawings — we engineer industrial certainty. Based in Chennai, India, we are a multi-disciplinary engineering design firm specialising in high-complexity sectors where precision is the baseline and failure is not an option.
QMS
Auto
Aero
Cell
HVAC
SPM
DID
Solution
Our Operating Domain
Our team operates at the intersection of Mechanical, Thermal, and Electronic engineering — providing a seamless transition from initial concept to manufacture-ready documentation. We serve procurement officers, plant managers, and lead engineers who need engineering output that performs as well on the floor as it does in a review meeting.
MechanicalThermalElectronicChennai, India
Why Engineering Leaders Choose Us
Multi-Domain Fluency
Unlike niche firms, we bridge the gap between domains. Whether integrating an ECU into an automotive chassis or designing a thermal-efficient industrial boiler, our cross-functional expertise eliminates "handoff friction" — one team, full discipline coverage.
Compliance-First Culture
We don't design in a vacuum. Every deliverable is benchmarked against global standards — AS9100 for Aerospace, IATF 16949 for Automotive, ASME/IBR for Thermal Systems, and ASHRAE for MEP — so your design clears regulatory review without redesign loops.
Simulation-Driven Accuracy
By utilising advanced FEA and CFD early in the design cycle, we identify and resolve structural and thermal bottlenecks before they reach the prototype stage — catching failures in the model, not on the shop floor.
Manufacture-Ready Deliverables
We don't hand over concept sketches. Our outputs are fully annotated CAD models, GD&T drawing packages, and simulation reports that go directly to production, procurement, or statutory inspection — zero interpretation required.
Core Philosophy
"To empower global industries with design architectures that are as robust in practice as they are elegant in theory."
We believe that great engineering is invisible. It's the reliability of a flight-critical component, the efficiency of a U-shaped manufacturing cell, and the absolute accuracy of a QMS-compliant documentation package. At DID Solution, we provide the technical backbone that allows your business to scale with confidence.
Technical Capabilities
Software Stack
CATIA V5 / V6
SolidWorks 2023+
AutoCAD / Revit MEP
ANSYS (FEA + CFD)
Methodology
DFM — Design for Manufacturing
DFA — Design for Assembly
Lean Cell Architecture
APQP / FMEA / PPAP
Quality Standards
ISO 9001 : 2015
AS9100 Rev D
IATF 16949 : 2016
IS:2825 / ASME / IBR
Our Process
Service-specific workflows, audit-ready at every step.
Select a service domain to see its exact engineering workflow — each track is tailored to its governing standard and deliverable set.
01
Clause Gap Analysis
Audit current documentation against AS9100D / IATF 16949 / ISO 9001 clause matrix. Identify non-conformances and missing records.
#GapAudit
02
QMS Architecture
Define document hierarchy: Quality Manual → Level 2 Procedures → Level 3 Work Instructions → Level 4 Records.
#DocHierarchy
03
APQP / FMEA Build
Develop DFMEA, PFMEA, Control Plans, and MSA studies aligned to AIAG-VDA methodology.
Mistake-proofing devices, limit switches, and vision systems integrated at critical assembly stations.
#PokaYoke
05
Future-State VSM & Handover
Future-state VSM with OEE targets, implementation roadmap, and operator standard work sheets issued.
#OEE
01
Site & Load Data
Architectural drawings reviewed, occupancy schedules captured, and ASHRAE 62.1 outdoor air requirements defined.
#ASHRAE62.1
02
Cooling / Heating Load
HAP / IES-VE load calculations: envelope U-values, solar gain, internal loads, and infiltration modelled.
#LoadCalc
03
Cleanroom Design
ISO 14644 ACH rates, pressurisation cascade, HEPA/ULPA layout, and unidirectional flow zones engineered.
#ISO14644
04
Duct & Pipe Sizing
Equal friction / velocity method duct sizing; pipe sizing to ASHRAE Handbook. Systems modelled in AutoCAD MEP / Revit.
#DuctSizing
05
MEP Coordination
Clash detection across M, E, P disciplines. BIM coordination model issued to eliminate site conflicts.
#BIM #Clash
06
BOQ & Commissioning
Construction-ready drawing set, full BOQ with equipment data sheets, and TAB / commissioning protocol.
#BOQ #TAB
01
Thermal Sizing
Steam demand, fuel type, and efficiency targets set. Combustion air, flue gas volume, and heat release calculated.
#ThermalCalc
02
Pressure Part Design
Shell, tube plates, headers, and steam drum designed to IBR / ASME Sec. I thickness equations with corrosion allowance.
#IBR #ASMESecI
03
CFD Combustion Analysis
ANSYS Fluent / CFX combustion and heat transfer model: flame shape, heat flux distribution, and NOx prediction.
#CFD #ANSYS
04
Statutory Drawings
IBR Form V / ASME U-stamp drawings: GA, pressure part details, weld joint details, and NDT schedule.
#IBRFormV
05
Inspection & Approval Support
Technical dossier assembled for IBR inspectorate / Authorised Inspector review — calculations, material certs, and WPS.
#WPS #NDE
01
Application Study
Part geometry, force requirements, cycle time target, and production rate defined. Risk assessment initiated to ISO 13849.
#RiskAssessment
02
Machine Concept
Mechanism selection — pneumatic, hydraulic, servo, or hybrid. Kinematic simulation to validate cycle and stroke.
#Kinematics
03
Detailed Mechanical Design
Frame, actuators, tooling, and guideways designed in SolidWorks. FEA on critical structural members.
#SolidWorks #FEA
04
PLC / HMI Architecture
I/O mapping, ladder logic / FBD programming, safety relay design to PLd, and HMI screen layout.
#PLC #ISO13849
05
Jig & Gauge Design
Locating and clamping schemes with tolerance analysis. Go/No-Go gauge drawings for in-process inspection.
#GaugeDesign
06
FAT & Documentation
Factory Acceptance Test protocol, CE technical file, operation & maintenance manual, and spare parts list.
#FAT #CEMark
01
Design Brief & Feasibility
Part geometry, material grade, production volume, and cycle-time targets established. Strip layout and blank nesting feasibility assessed for progressive die design.
#StripLayout
02
Die / Mold Engineering
Multi-station progressive die design or injection mold cavity engineered in SolidWorks/CATIA with punch-die clearances, land areas, cooling channel routing, and gate optimisation.
#ProgressiveDie #Mold
03
Simulation & Poka-Yoke
Forming simulation for springback prediction and flow analysis for mold fill. Poka-Yoke error-proofing features — part-presence sensors, misload detectors — integrated directly into the tooling design.
#PokaYoke #FEA
04
Material & Drawing Release
Tool steel selection — D2, H13, P20, or coated variants — with heat treatment callouts. Full manufacturing drawing package: die assembly, component details, jig & fixture drawings, and inspection gauges.
#ToolSteel #GD&T
Our Services
Engineering solutions built for industry.
Every engagement starts with your specification and ends with manufacture-ready drawings, validated designs, and full compliance documentation.
01 — QMS Documentation
Audit-Ready QMS Documentation
Your QMS should pass the audit before the auditor arrives. We engineer documentation systems — SOPs, control plans, PFMEA, work instructions — structured to AS9100 Rev D, ISO 9001:2015, and IATF 16949:2016 clause hierarchies, eliminating non-conformance findings at source.
→ AS9100 / ISO 9001 / IATF 16949 gap analysis & clause mapping
→ APQP, PPAP Level 3–5 documentation packages
→ FMEA (Design & Process), Control Plans, MSA, SPC setup
From body-in-white stampings to EV battery thermal enclosures, we deliver designs that survive the press tool, the crash test, and the production line. Our DFM-first methodology on interior and exterior components cuts tooling rework cycles by integrating manufacturing constraints from day one.
→ BIW structural analysis: roof crush, side impact, torsional rigidity
Flight-critical geometry demands tolerances that leave no margin for interpretation. We design and analyse aerospace components — brackets, structural ribs, control linkages, jigs & fixtures — under AS9100 Rev D protocols, delivering FEA-validated packages that compress certification lead time.
A poorly sequenced manufacturing cell bleeds Takt time and inflates WIP inventory silently. We engineer lean cell layouts with value-stream-mapped material flow, ergonomic workstation sequencing, and automated conveyance design — cutting non-value-added motion before the first tool is bolted down.
→ Takt-time calculation, line balancing & OEE improvement mapping
→ 2D/3D lean layout design with spaghetti-diagram & flow analysis

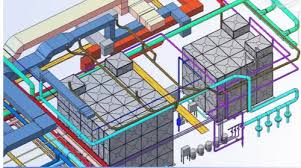

Cleanroom qualification starts with the HVAC design, not the validation protocol. We engineer ASHRAE 62.1 / 90.1-compliant mechanical systems, full MEP coordination packages, and ISO 14644-class cleanroom air distribution layouts — delivering construction-ready Revit/AutoCAD drawings, BOQ, and commissioning checklists in a single handover package.
→ Cleanroom ISO 14644 air change rate, pressurisation & filtration design
Boiler compliance isn't a checklist — it's a thermal, structural, and regulatory discipline. We deliver IBR, ASME Section I & VIII, and IS:2825-compliant pressure vessel engineering with CFD-validated combustion models, eliminating design rejections at the statutory inspection stage.
→ IBR & ASME Sec. I / VIII design calculations & statutory approval drawings
Off-the-shelf machines don't solve non-standard problems. We design Special Purpose Machines from blank-sheet mechanical concept through PLC-integrated control architecture — delivering CE-marked, ISO 13849-validated systems with sub-4-second cycle times and full FMEA-backed safety circuits.

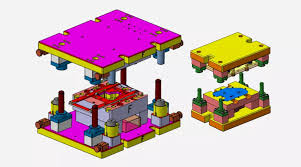

Precision Tool & Die Design — High-Performance Tooling for Complex Manufacturing
We specialise in the end-to-end design and engineering of high-precision tools and dies tailored for the automotive, aerospace, and industrial sectors. Our approach integrates advanced CAD/CAM methodologies with material science to ensure your tooling survives millions of cycles with zero compromise on part accuracy.
→ Progressive Die Design: multi-station dies for high-speed production & complex metal forming
→ Injection Molds: high-precision molds for complex plastic components with optimised cooling channels
→ Poka-Yoke Integrated Tooling: smart dies with built-in error-proofing to eliminate defects at source
→ Jigs & Fixtures: custom holding & positioning devices to streamline assembly and inspection
→ Material Optimisation: high-grade tool steels & coatings for maximum wear resistance & minimal downtime
